MODULAR STEEL FRAMEWORK

Framework Materials & Components

A clear catalogue of modular steel frame systems, frame formats and matching components for export supply.

MATERIAL SUPPLY ONLY
Framework Materials & ComponentsQ235B · GALVANIZED · EXPORT SUPPLY

Supply is based on buyer-approved specifications, drawings, quantities and documentation requirements.

01

System families

Select the connection system first. Dimensions, tube specification and finish are confirmed in the RFQ.

SYSTEM REFERENCE 01

Drop Lock Frame

SYSTEM REFERENCE 02

Flip Lock Frame

SYSTEM REFERENCE 03

Snap-on Lock Frame

SYSTEM REFERENCE 04

Canadian Frame

SYSTEM REFERENCE 05

Australian Frame

SYSTEM REFERENCE 06

European Frame

02

Frame formats

Common forms can be supplied in multiple widths and heights or fabricated to approved requirements.

01

Walk-through / Canopy Frame

Open access frame formats

02

Box / Double-box Frame

Compact modular frame formats

03

Mason / Arch Frame

Regional frame formats

04

Custom Frame Format

Fabricated to approved requirements

03

Matching components

Choose only the components required for the selected frame system and shipment scope.

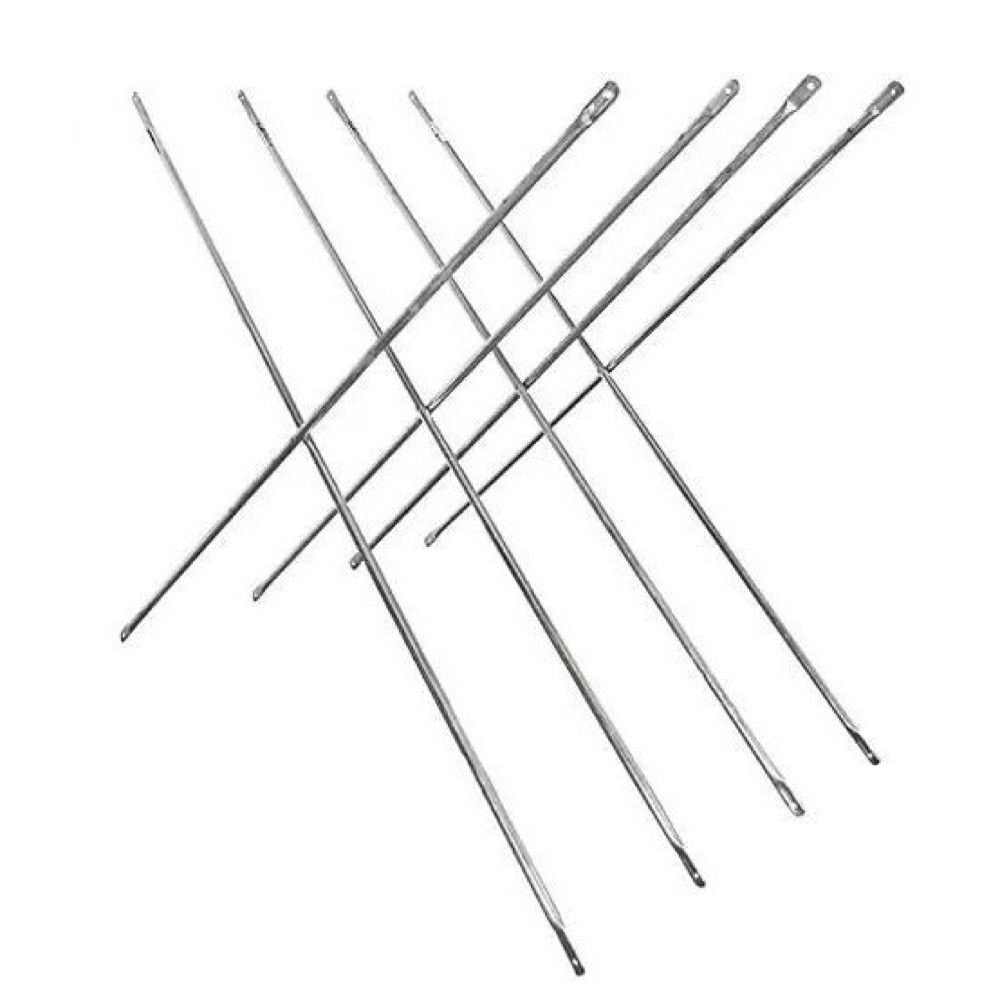

Cross Braces & Guard Rails
COMPONENT 01

Cross Braces & Guard Rails

Length, hole spacing and end type

Adjustable Bases & Screw Jacks
COMPONENT 02

Adjustable Bases & Screw Jacks

Base plate, thread and adjustment range

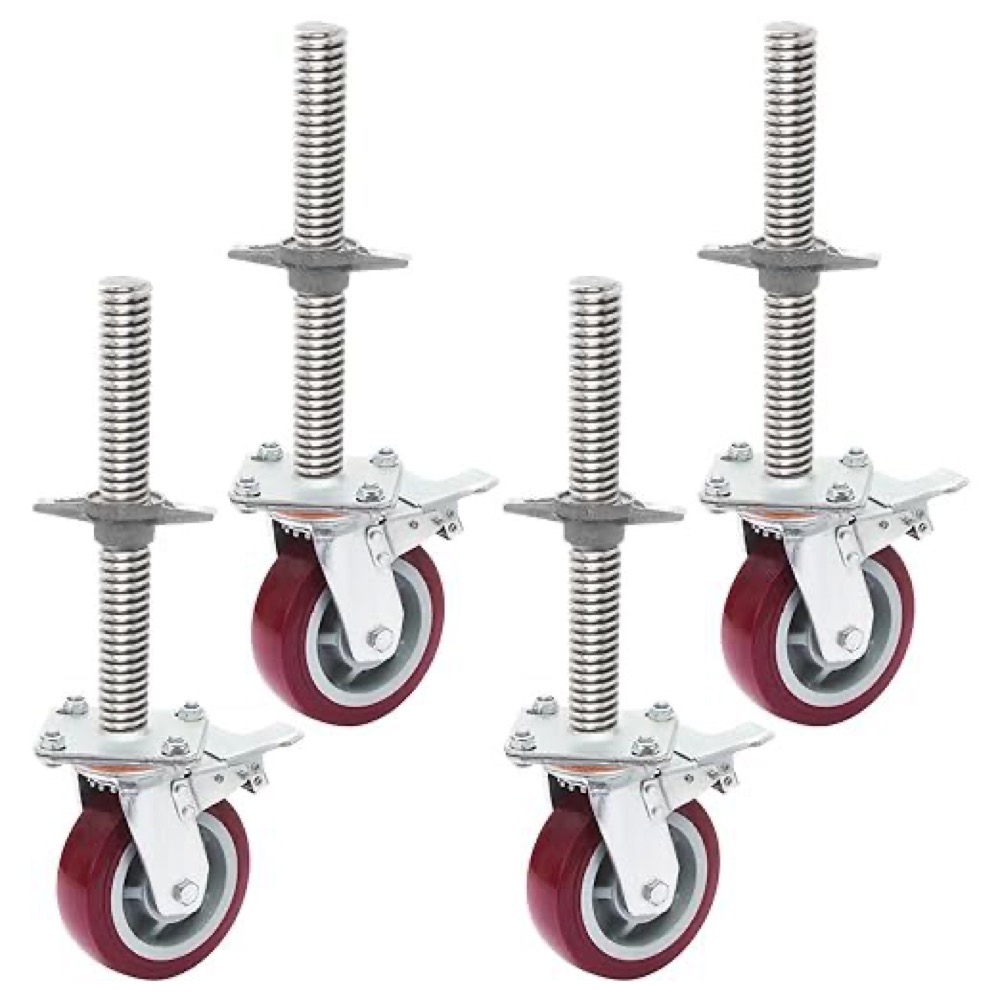

Casters
COMPONENT 03

Casters

Diameter, load class and brake option

Couplers & Sleeves
COMPONENT 04

Couplers & Sleeves

Connection type and tube compatibility

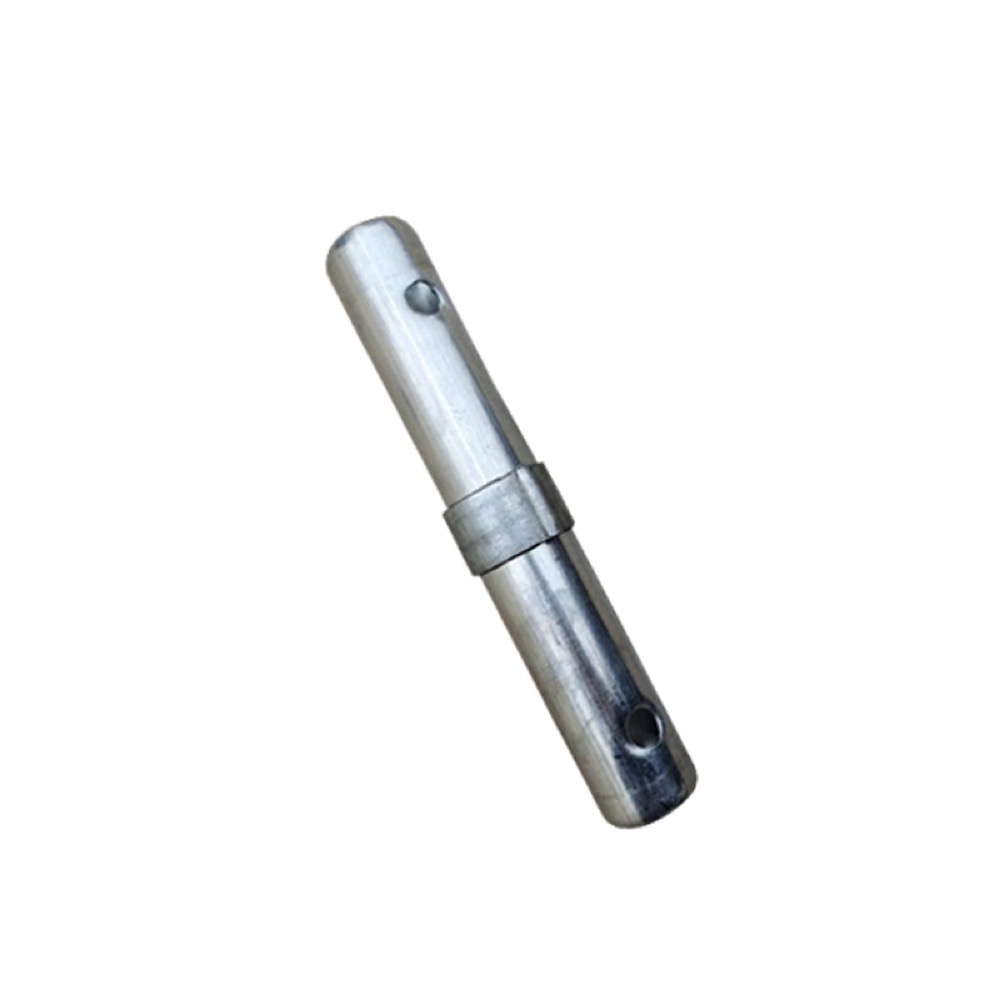

Connector Pins & Locks
COMPONENT 05

Connector Pins & Locks

Pin diameter, hole pattern and lock form

Planks & Support Accessories
COMPONENT 06

Planks & Support Accessories

Dimensions, finish and matching system

RFQ CHECKLIST

Information required for quotation

Send the following parameters so we can match production resources and prepare a comparable material quotation.

Send framework RFQ ↗
  1. 01Frame / system type
  2. 02Steel grade
  3. 03Tube outside diameter
  4. 04Wall thickness
  5. 05Overall dimensions
  6. 06Unit weight
  7. 07Surface treatment
  8. 08Lock / connector form
  9. 09Required components
  10. 10Testing and export documents

Reference diagrams and images identify product families only. Final supply is subject to the buyer-approved specification, drawing, sample and commercial order. AeroBarrier supplies materials and does not provide structural design or installation services.
